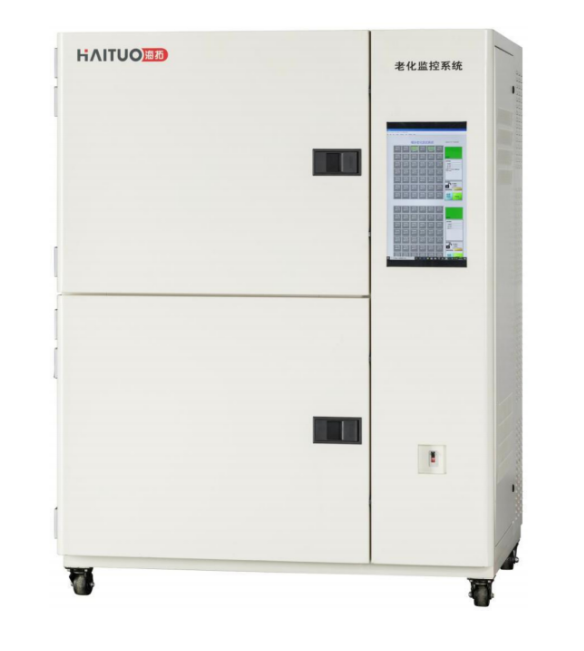

On-line Temperatrue Aging Chamber(Clean function)

Product description：

Feature：





1.Class 10, 000 clean, to avoid contamination of the module or COB under test



2. Support SFP/SFP+, XFP, QSFP28 and other encapsulation forms



3. IIC communication, support 8472 protocol, 8077 protocol, 8436 protocol, etc



4 Support single module current 0~1.5A, ±0.5%FS±2mA, can be used for different modules



5 Configure different over-current protections



6. It can monitor the working current of each module and automatically identify whether the module fails



7.Failure judgment can be set . It can be customized.


Share to:
Other parameters

Equipment

On-line aging test chamber

Mode

HCON-280D-150-on line

Technique specification

Internal size

70 cm (W) x1625px (H) x1550px (D)*2

Internal capacity

280L*2 chambers

External size

3625px (W) x4750px (H) x2725px (D)

Temperature range

RT+30℃~120℃（no load）

Temperature uniformity

±3℃；

Temperature fluctuation

±1℃；

Heating rate

≥3℃/min；

Control system

22 inch touch screen

Communication interface

ETHERNET RJ45；

Power supply

AC 3 phase 5 wire?380V 50Hz；

Power

Within 10KW

Weight

500KG

1.?Test texture and module interface

Layer

2 chambers，each chamber contains 42 circuit broad inside，a total of 84 pieces.

Board module numbers

?

Each board contains 8 modules

?

Number of ????modules that ??can be accommodated

?

?

672 pieces

Optical module interface

IIC?interface，compatible IIC 8472、IIC 8436 ；

Optical module power

3.0V~3.5V Adjustable software, output fluctuation≤1%；

?

Channel drive capacity

SFP+ module ≥300mA， QSFP+module≥600mA， over-current protect range 20~1000mA；

Current detect accuracy

0.1mA，deviation≤3%；

Voltage detect accuracy

4mV，deviation≤3%；

Bracket thermistor

±2℃；

Others

Provide ESD/EOS monitoring of 3.3V module power supply.


3 Module monitoring software：

?

?

Software function

1 Complete product power on, temperature control and monitoring; ?

2 Display temperature, current, voltage, aging time, etc. ?

3 Product aging state and software shutdown/start do not affect each other; ?

4 After the software restarts, the current product aging status is displayed.??(Software hot start) ?

5 Warning message is displayed when the software is shut down.?

Specific module monitoring data

Optical module voltage and current/Input voltage and current/drive board temperature/Tray temperature and optical module temperature/bias current/sending power;?

Control interface

22 inch touch screen HMI

?

4 Others：

Power supply

3 Phase?5 wire?AC380V±10%，≤10KW

Environment

The temperature around the device shall be +20~+30℃.

?

?
